CLOSED CENTER SELF CENTERING SCROLL CHUCKS (G350Z520)

SELF CENTERING SCROLL CHUCKS

Features

Cast iron or forged steel body.
Install side strips and chips cover sealed base jaw to prevent chips and coolant ingress.
High accuracy of repeated positioning.
Special specifications can be customized.

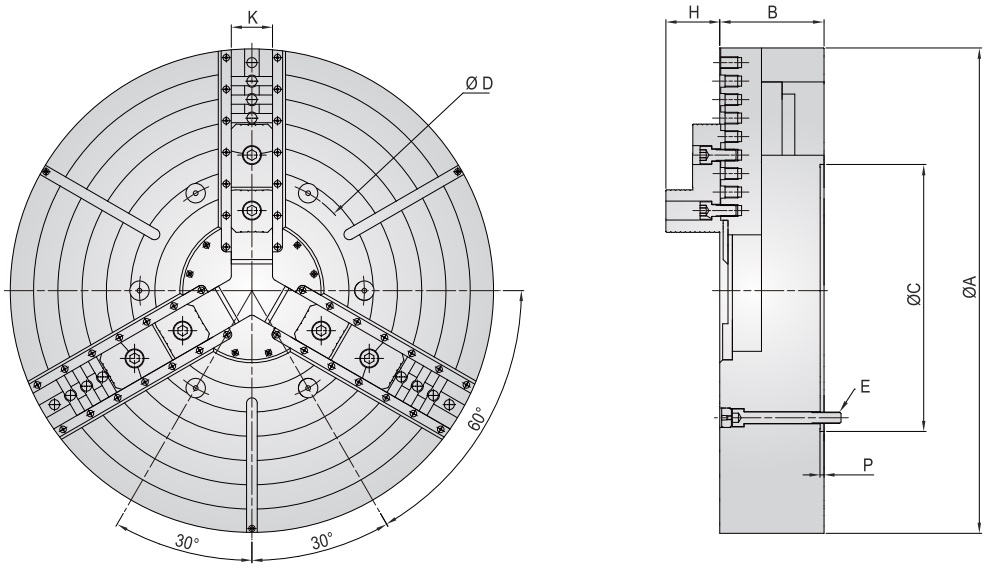

Model	A	B	C (H6)	D	E	H	K	P	Max. Gripping Force (kgf)	Gripping Range [Ømm] (min)	Gripping Range [Ømm] (max)	Gripping Range [Inside] (Ømm) min	Gripping Range [Inside] (Ømm) max	Max. Speed (r.p.m.)	Weight (kg)
G350Z520	1250	220	520	463.6	6-M24	92	85	8	8500	290	1080	350	1100	360	1550

If the dimension and specifications change, please take the confirmation drawing as standard.
