PE series (Soft top jaws - Serration)

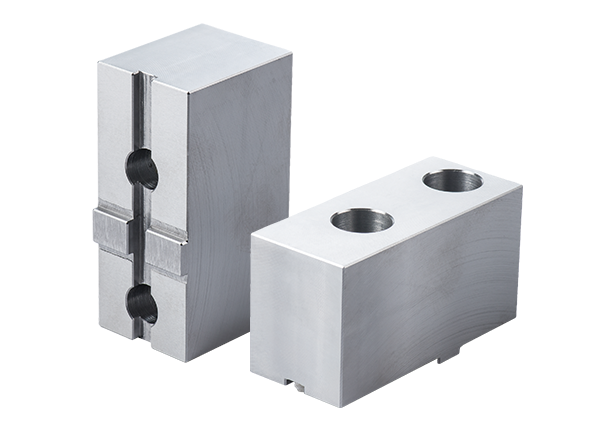

SOFT TOP JAWS - SERRATION (PE1-15-1)
ACCESSORIES

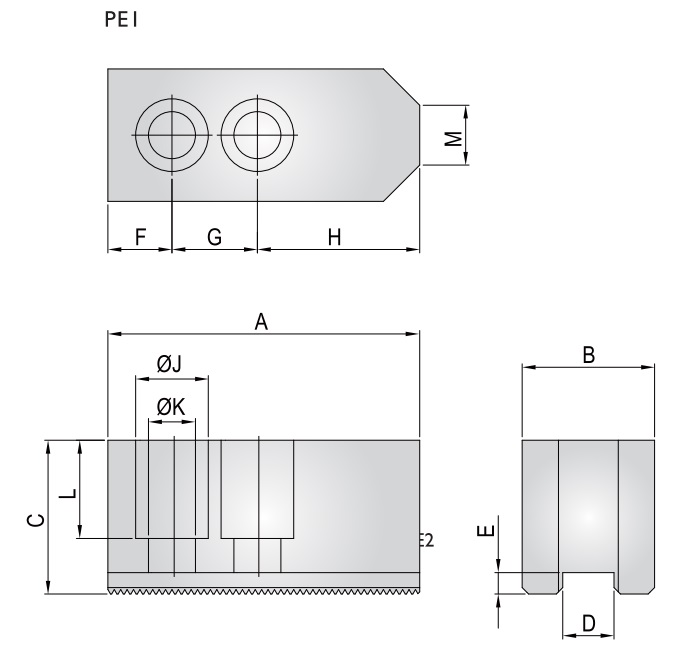

| Model | A | B | C | D | E | F | G | H | J | K | L | Serration Pitch | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PE1-15-1 | 165 | 62 | 62 | 25.5 | 8 | 37 | 43 | 85 | 32 | 22 | 38 | 1.5*60° | 4.1 |
If the dimension and specifications change, please take the confirmation drawing as standard.
