PE series (Soft top jaws - Serration)

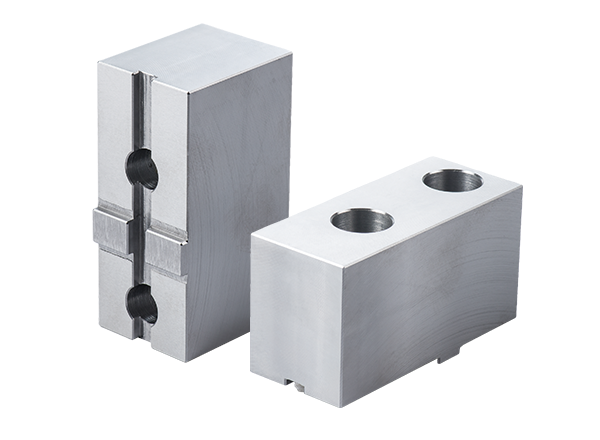

SOFT TOP JAWS - SERRATION (PE1-24-1)
ACCESSORIES

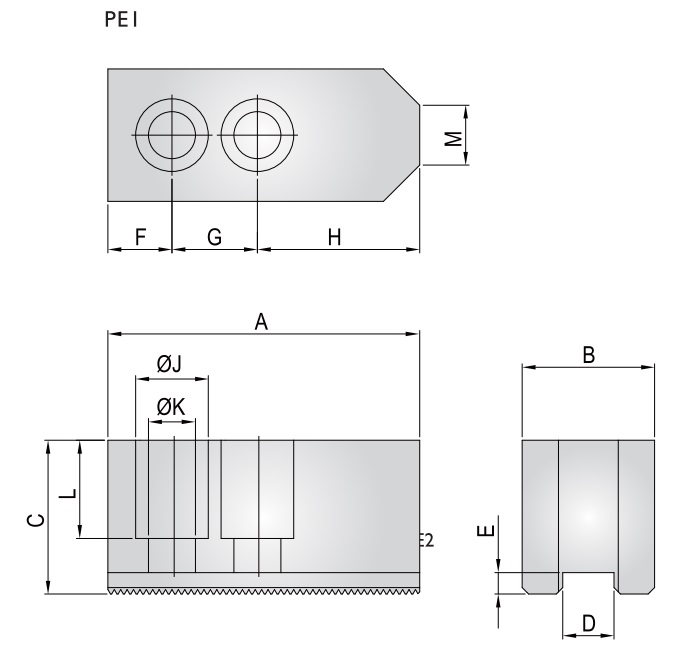

| Model | A | B | C | D | E | F | G | H | J | K | L | Serration Pitch | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PE1-24-1 | 180 | 64 | 70 | 25 | 9 | 40 | 60 | 80 | 32 | 22 | 45 | 3.0*60° | 5.3 |
If the dimension and specifications change, please take the confirmation drawing as standard.
