PE series (Soft top jaws - Serration)
SOFT TOP JAWS - SERRATION (PE1-32-1)
ACCESSORIES

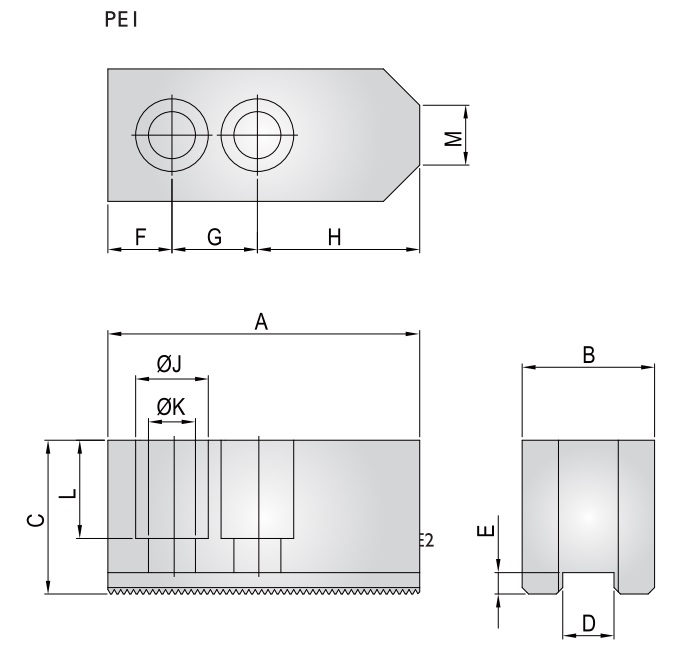

| Model | A | B | C | D | E | F | G | H | J | K | L | Serration Pitch | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PE1-32-1 | 210 | 74 | 90 | 25 | 9 | 40 | 60 | 110 | 32 | 22 | 65 | 3.0*60° | 9.6 |
If the dimension and specifications change, please take the confirmation drawing as standard.
